Luise Freese

How-to-deal-with-many-to-many-relationships-in-Dataverse

How to deal with Many-to-Many-relationships in Dataverse

While building an app that stores data in Dataverse, I came across a not easy to resolve problem. If you already follow me for a bit longer, you may assume that this is about ProvisionGenie, and so I will use this use case of provisioning Microsoft Teams teams and storing data about that as an example. To explain the issue, we first need to understand some basics, which I will cover here first:

What is Dataverse

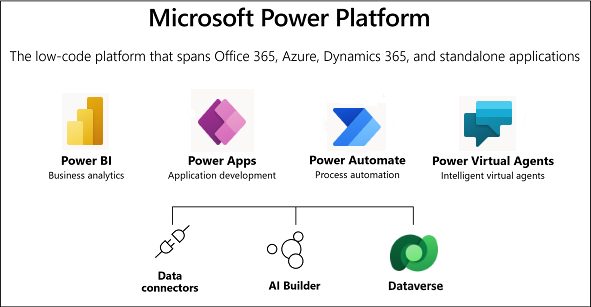

Overview on Power Platform

Dataverse is a is a secure and scalable SaaS data service, that sits right in Power Platform. Datverse’s database is Azure SQL, and often, people refer to Dataverse just as ‘a database’, but it is so much more:

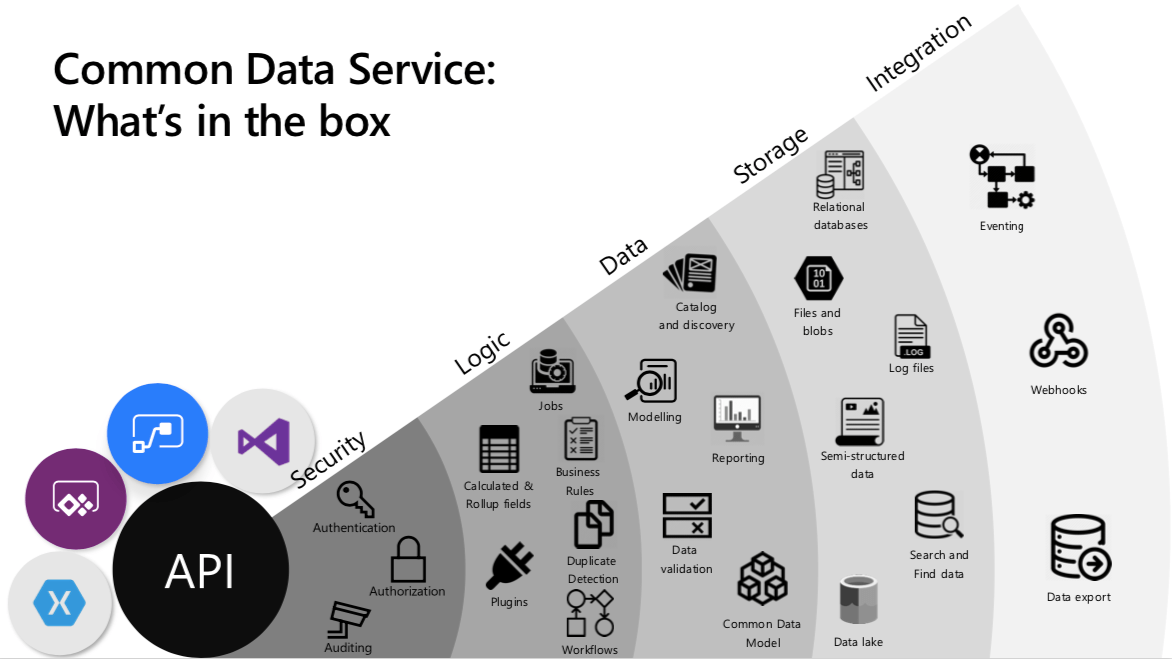

Dataverse as a SaaS

I will not go into full detail in this blog post, but cover something that people with a background in Microsoft 365/SharePoint might not be aware of:

How does Dataverse distinguish from SharePoint lists and what makes it a ‘real database’?

In Dataverse, we store data in tables, we can either use predefined ones or we can creates our own tables. We can choose from different kind of column types to store data just as needed. The beautiful thing that get our Dynamics 365 colleagues excited is, that Dataverse can serve as a ‘relational database’, which means that we can create all kinds of relationships between data, which gives us a better overview on data as we can put data into context.

Also, we have role-based access control (RBAC), which means that we can granularly control who can view, edit, delete etc. data, while this isn’t possible with SharePoint lists. If we use a list as data source for a Power Apps, we need to share the entire list with all users of that application, which means that users can even bypass the app and manipulate and delete data directly on the SharePoint site.

Now you may ask, what is it about relationships in Dataverse that makes it so special?

What kind of relationships do exist in Dataverse?

relationships

1-to-many relationship

In a 1:N (1-to-many) relationship we associate a (1) row of a table to many other rows in a related table with a lookup column. We can see a list of the related rows that are associated with our primary table.

You will come across the term ‘N:1(many-to-1)’ as well - it is the same thing as a 1:N relationship- just viewed from the related table, not from the parent/primary table.

As an example, please imagine a table Teams Requests and another related table Teams Channels. Each Team can have many channels, but a channel can be only associated with one Team (represented in the Teams Request table). This means, that we need to have a 1:N relationship between Teams Requests table and the Teams Channels table. We reference this like this:

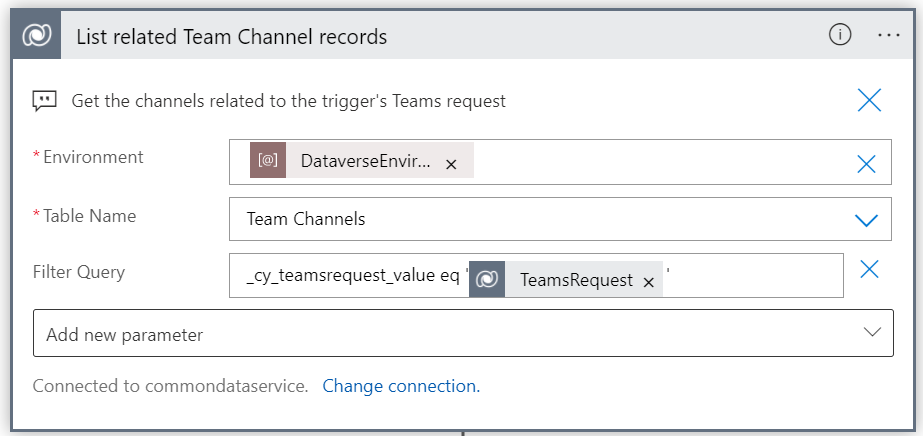

get related channels

We get the correct environment, fetch the table Team Channels and filter by TeamsRequestId so that only the related channels to that Teams request will be returned.

Many-to-many relationships

An N:N (many-to-many) relationship depends on a special relationship table (intersect table), so that many rows of one table can be related to many rows of another table.

We can see a list of all rows in the related table that our primary table is associated with.

As an example, please image now the Teams Requests table again that needs to be related to a Teams Users table. In this Teams Users table we want to store information on members and owners of the teams in the Teams Requests table.

A Teams can have many users as members, and each user can be a member of different Teams.

Also, a team can have many users as owners and these users can be owners of several different teams.

This means, that we need to have two N:N relationships between teams Requests table and Teams Users table.

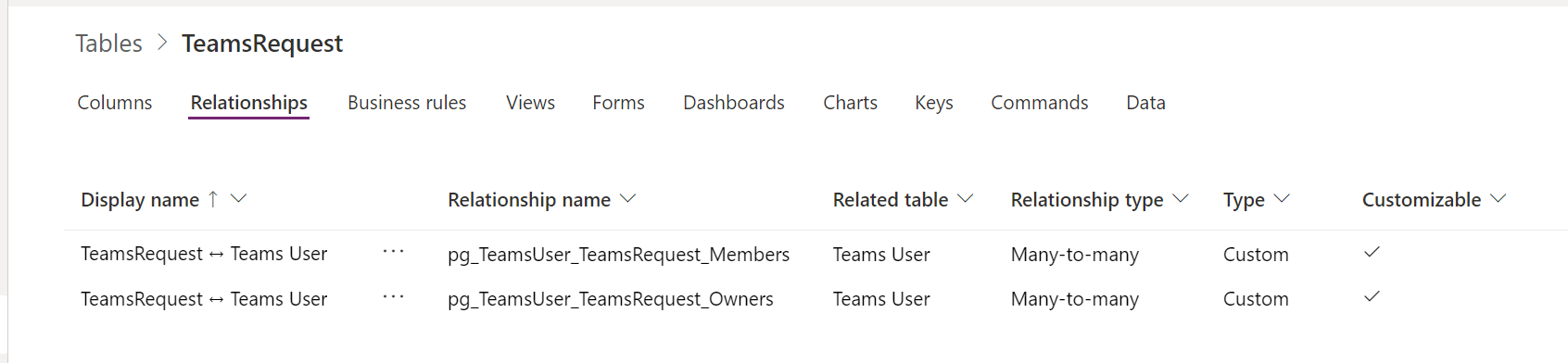

N:N relationships

Now the intersection tables come into play: They make sure that we can associate many rows of the related table to the primary table.

In Dataverse, we don’t get to see these intersection tables. but we can customize their name:

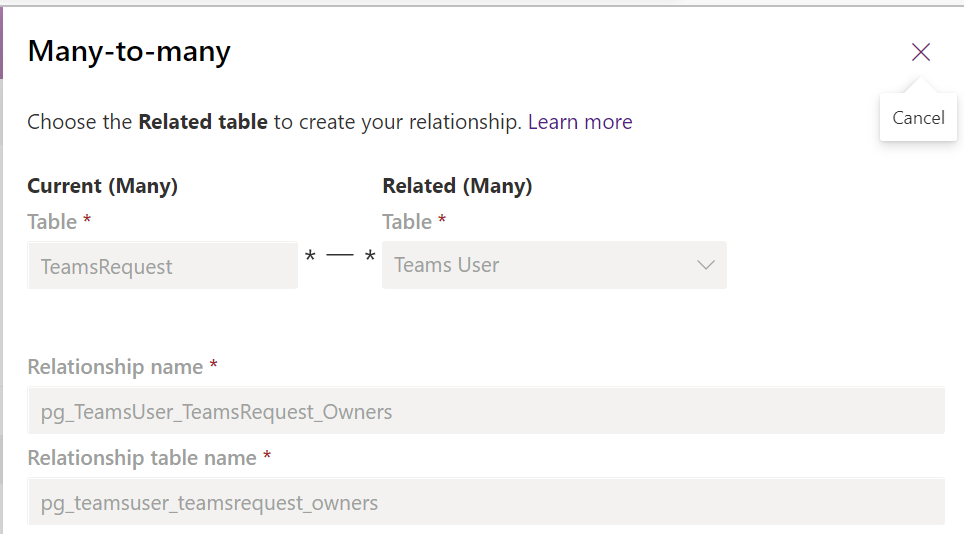

name of the intersection table

How can you reference Many-to-Many Relationships in Azure Logic Apps?

Now that the distinguishing element between an Owner of a Team and a Member of that Team is in the relationship, we need to reference that intersection table in a Logic App flow in order to fetch the right rows from the Teams User table to add them with the correct role to the Team that we want to provision.

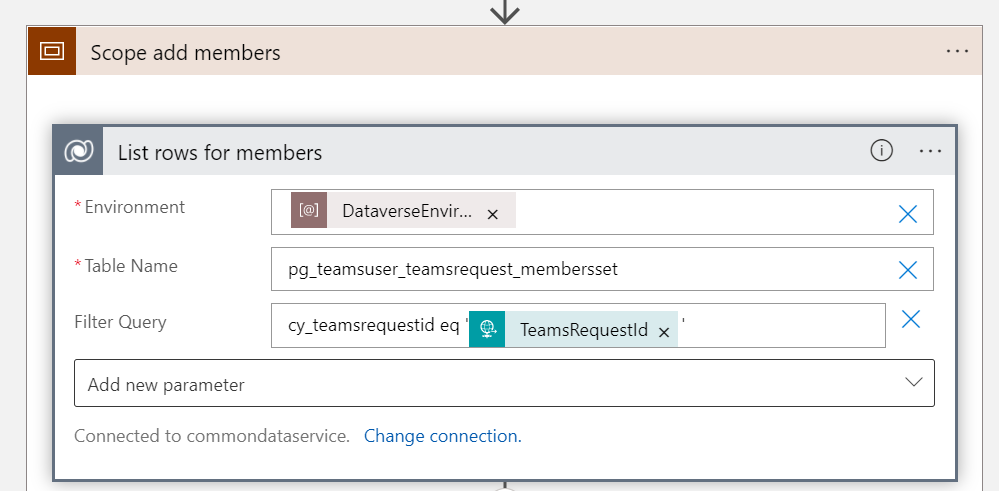

List rows for Members

In order to do so, we select the correct environment, and type the name of the relationship table followed by a set, then we filter for the correct Teams Request ID so that only members for that specific team will be returned.

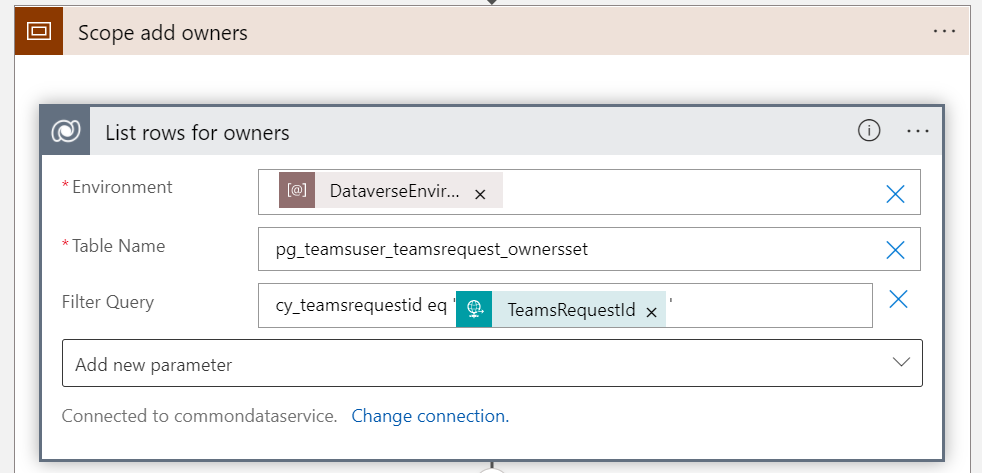

List rows for Owners

The very same applies to the relationship table for the owners.

Conclusion

Before you build your Power Platform solution, its absolutely worth it to spend a couple of thoughts on the data model. If you

  • need more relationships than a simple lookup column
  • need granular control who can access which rows
  • a performant place to store data
  • a highly scalable solution

then its very likely, that Dataverse is a service that you should consider.

In order to take full advantage of Dataverse’s capabilities in terms of being a ‘relational database’ its worth it to understand what is an intersection table and how you can reference it. Let me know what you think in the comments
